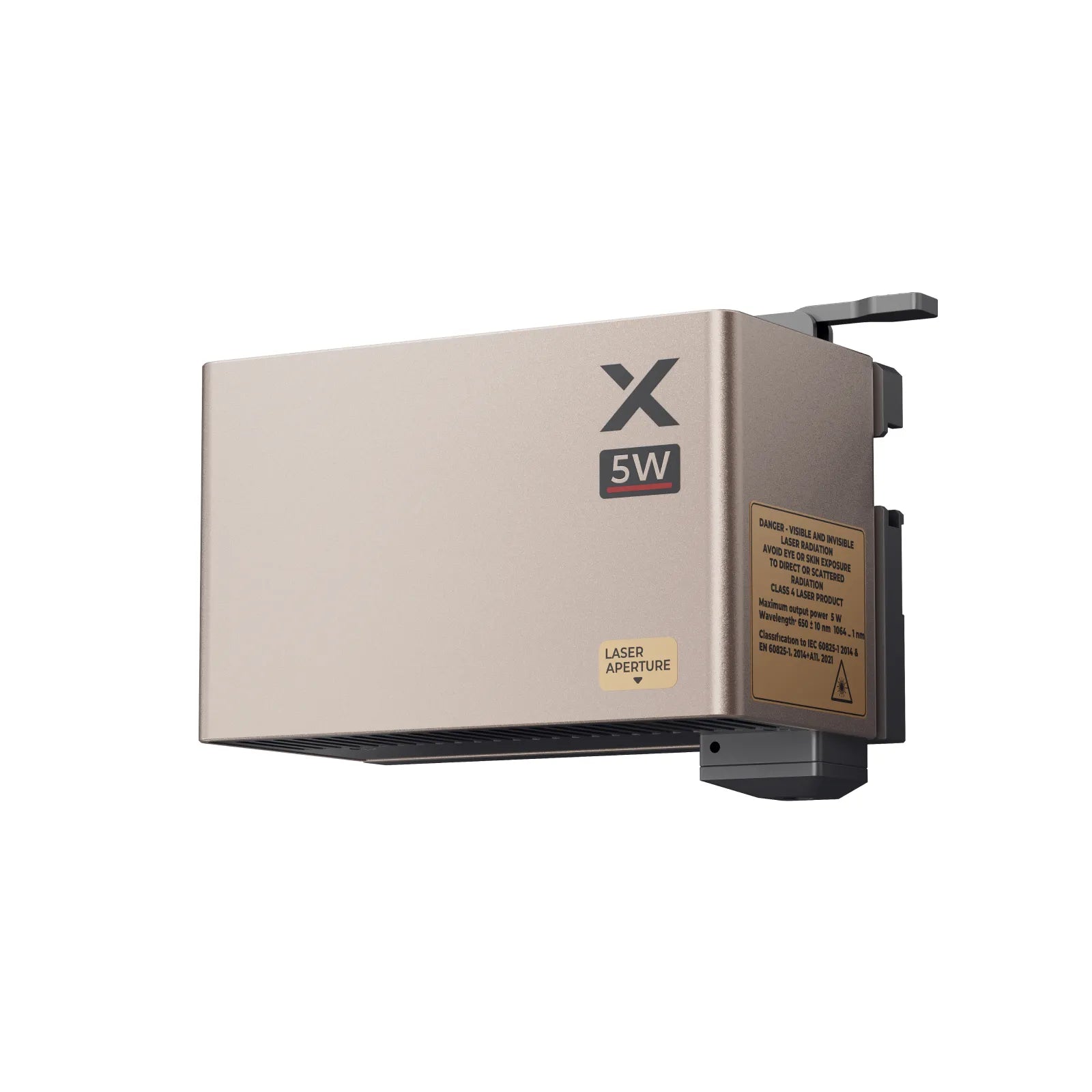

5W IR Laser Module for P3

NOW
VAT Excl.
MSRP
VAT Excl.
NOW
VAT Excl.

Tax exemption: 3% - 13% tax savings for today and future orders.
Hot
New

5W IR Laser Module for P3

NOW
VAT Excl.
MSRP
VAT Excl.
NOW
VAT Excl.

Tax exemption: 3% - 13% tax savings for today and future orders.
Tax Free
Luck Deals Extended ☘
Last chance to save & get the Lucky Starter Kit!
00
d
00
h
00
m
00
s
$80.00 off over $999.00
$300.00 off over $3,999.00
$500.00 off over $6,999.00
$1,000.00 off over $8,899.00
Discount auto-applied at checkout!
Bulk Discount
Show More
Code cannot be combined with other codes.
VAT Excl.
More Exclusive Offers
More Exclusive Offers
US: Fast and Free Shipping Over $89
shipping-iconshipping-iconshipping-iconshipping-icon
Schools, Government, or NGOs? Request a quote to pay via PO
60-Day Price Guarantee | 12-Month Warranty | 14-Day Return Policy*
Demo Room | 1 On 1 Expert Service

5W IR Laser Module for P3

Order today, ships in 1 business day
VAT Excl.
VAT Excl.
Order today, ships in 1 business day
See All Flexible Financing Options
Equipment leasing for small businesses.
*For reference only. Details are subject to the installment platform's approval.

*The estimated monthly installments displayed are calculated based on the current selling price of the items you have selected on this page. This calculation excludes any items added via "Frequently Bought Together" or "xToolCare" selections and represents a recommended financial payment option for the corresponding total price range. Different price ranges may feature different recommended payment plans.
Please note:

  • All calculated down payments and installment amounts are for reference only.
  • The final payment amounts, terms, and eligibility are not determined by xTool but will be finalized by the third-party lenders upon your approved application.
  • Certain Buy Now, Pay Later (BNPL) options, such as those from Affirm or CitiPay, may display payment estimates based on either the current selling price or the Manufacturer's Suggested Retail Price (MSRP). These estimates are for prequalifying reference only. Your actual down payment and final terms will be confirmed based on the credit limit approved by the lenders.

Learn more

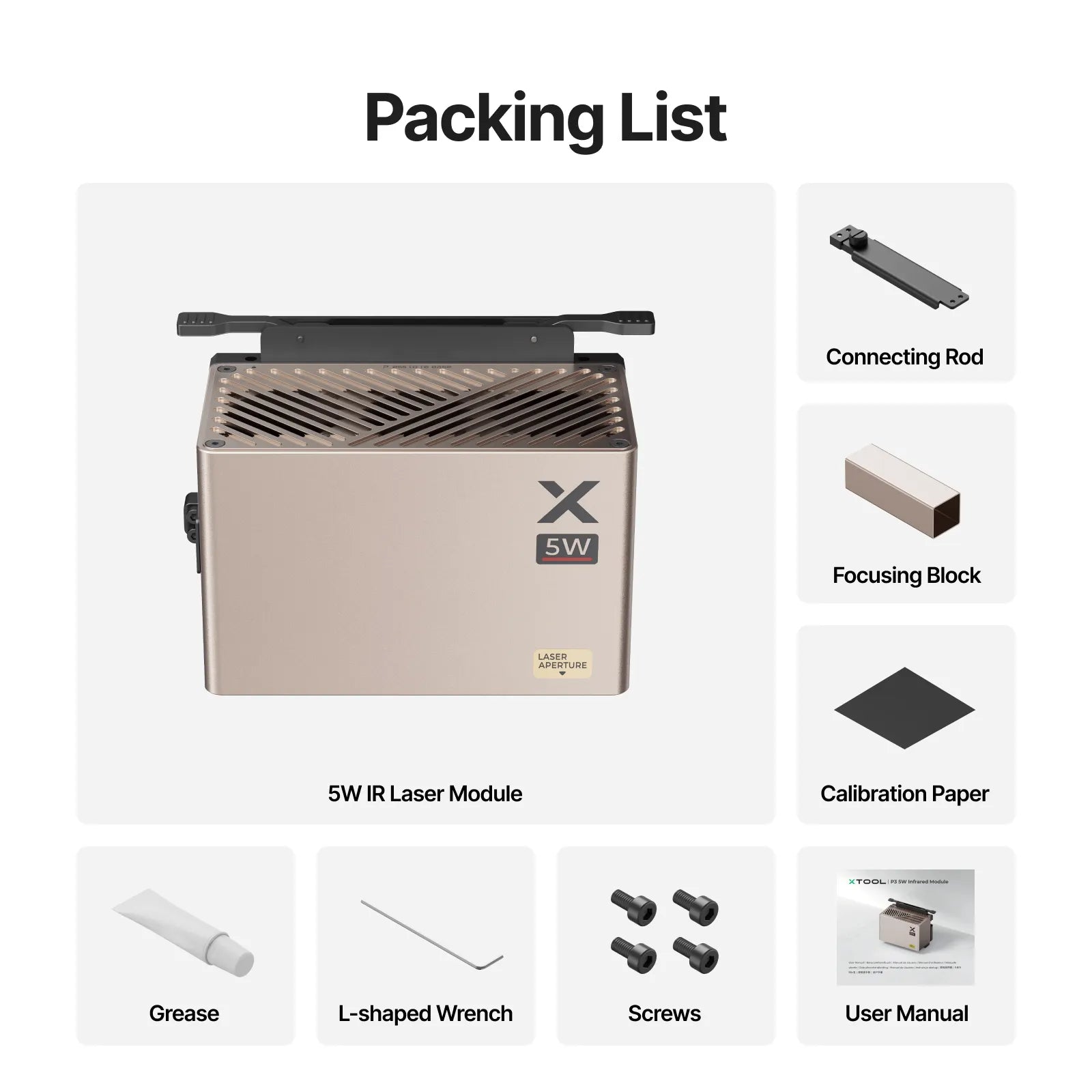

See What's Included
NOW
NOW
VAT Excl.
NOW
NOW
VAT Excl.

Specifications

DimensionData
Wavelength1064nm±1nm
Power5W
Pulse Width4ns
Repetition Rate25~30KHz
Peak Power49~65KW
Single Pulse Energy>0.14mJ
Focal Length49mm
Beam Waist≥3mm
Lifetime Requirement8000h
Laser Head Dimensions & Weight136.5mm*94.5mm*92.5mm 850g
Working Area650mm*426mm
Operating Temperature0~35°C
Storage Temperature-10 ~ 60°C
Cooling MethodAir Cooling
Power SupplyHost Power Supply (Powered by Main Unit)
Package Dimensions & Weight236mm*184mm*156mm 1.5kg

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Richard S.
Powerful module

Once you get it installed, which takes only a few minutes, it is super easy to use and remove. I can engrave with this module and cut with the CO2. So it is another way to print and cut. Awesome.

N
Nate
Easy setup and quality results

This was easy to setup and way more powerful than my S1 2W which already did a great job. Impressive metal marking and speed. Inovative add-on design.
