Full Penetration Weld (CJP): What It Means and How to Verify It
If you ask five welders what a “full penetration weld” means, you’ll likely get five different answers. Some will point to how the weld looks; others will say it is a code requirement for certain joints. A few will say, “it goes all the way through,” and leave it at that.
Each view captures part of the idea, but none defines it fully. In code terms, a full penetration weld, or complete joint penetration (CJP) weld, is a groove weld where the weld metal fuses through the entire joint thickness, from face to root, with no unfused gap. A weld may appear uniform on the surface and still fail inspection if fusion has not reached and bonded at the root. Without verified root fusion and continuity, it does not qualify as full penetration.
For those new to welding, this is one of the trickier concepts. Terms like full penetration, CJP (Complete Joint Penetration), PJP (Partial Joint Penetration), and fillet weld are often used loosely, even though each refers to a different joint condition.
This guide explains what a full penetration weld actually means, how it differs from other welds, and how it is achieved and verified.
What Is a Full Penetration Weld?
A full penetration weld is a type of groove weld, where the weld metal reaches through the entire joint thickness, from the face to the root, with no unfused gap left in between. It is typically used for structural members and pressure-bearing applications.
In welding codes, this condition is technically called complete joint penetration, or CJP. In the U.S., the terms are used interchangeably in practice. If someone says "full penetration weld" or "full pen weld," they refer to CJP.
A full penetration weld is a necessity across multiple applications, and hence you'll find it listed in different codes, each governing a different kind of structure:
| Code | What it governs |
|---|---|
| AWS A3.0 | Base term; defines "penetration" and "joint penetration" |
| AWS D1.1 | Structural steel |
| AWS D1.6 | Stainless steel structures |
| ASME Section IX | Welding procedures (WPS/PQR) and welder performance (WPQ) for pressure vessels and piping |
| ASME B31.1 / B31.3 | Power piping/process piping |
| API 1104 | Pipeline welding |
CJP is not a type of welding, limited to one process or tool; rather, it’s an end condition of the joint. TIG, MIG, stick, FCAW, SAW, and laser welding can all produce a CJP weld if the joint design, fit-up, and parameters are correct.
One of the requirements in thicker sections is preparing the edges. The edges are beveled so the arc/laser beam can access the root. Common groove shapes include V, U, and J. On thin material, this step is not always needed.
In CPJ context, a few terms get used loosely alongside full penetration and are worth pinning down before going further:
- Weld penetration: Depth that weld metal extends into the base metal from the original surface.
- Deep penetration: Informal term for processes that achieve greater depth per pass.
- Full penetration: Weld extends through the entire joint thickness with complete root fusion.
- Complete fusion: Fusion at all intended interfaces, including the root.
- Groove/bevel: Edge preparation provided to allow access to the joint root.
- Effective throat: The minimum distance from the joint root to the weld face, excluding excess weld metal or convexity, as defined for the applicable weld geometry.
- Leg size: Distance from the weld root to the toe of the fillet weld.
Full Penetration (CJP) vs. Partial Penetration (PJP) vs. Fillet Weld
CJP and PJP are both types of groove welds, defined by how much of the joint thickness is fused, whereas a fillet weld uses a different joint geometry altogether.
In a CJP weld, the effective throat equals the full material thickness. Whereas in a PJP weld, the effective throat is limited to the groove depth (which is less than the full thickness). As per AWS D1.1, for angles between 45° and 60°, the effective throat equals the groove depth. Below 45°, a 3 mm deduction is applied to reflect reduced root access.
In contrast, a fillet weld is applied over tee, lap, or corner joints rather than within a groove. For a typical equal-leg fillet weld in a 90° joint, the theoretical throat is approximately 0.707 times the leg size. Other joint angles and weld geometries require the applicable geometric or code-based calculation.
| CJPWeld | PJPWeld | FilletWeld | |
|---|---|---|---|
| Joint penetration | Full material thickness | Partial, set by groove depth | Not measured by penetration; sized by leg |
| Typical joint geometry | V, U, J, or bevel groove | Same groove types, shallower | Lap, tee, or corner joint, no groove |
| Root fusion | Complete, through entire thickness | Fused only to groove depth | Fusion at the fillet leg, not a defined root |
| Effective weld size | Full thickness of the thinner part joined | Groove depth (minus deduction if angle < 45°) | Approximately 0.707 × leg size for a typical equal-leg 90° fillet weld |
| Joint preparation | Extensive bevel/groove prep, often backing or backgouge | Moderate groove prep, shallower depth | Minimal, usually no bevel |
| Inspection difficulty | High, often needs volumetric NDT | Moderate methods | Lower, visual and surface methods usually sufficient |
| Fabrication cost | Highest | Moderate | Lowest |
| Typical use cases | Primary tension members, fatigue-critical connections, pressure boundaries | Compression or shear-dominant static connections, column splices, stiffeners | Lap and tee connections, secondary structural connections |
Can a Fillet Weld Be Full Penetration?
No, a fillet weld cannot be full penetration because a full penetration weld requires fusion through the entire joint thickness, but a fillet weld only joins the surfaces at the intersection,forming a triangular profile. Since the two thicknesses are not fused across their full section, it cannot qualify as full penetration.
Key Techniques: How to Achieve Full Joint Penetration
Full joint penetration is a technical and code-driven requirement, and meeting it requires three things to be lined up well: the design must allow access to the root, the fit-up has to hold that geometry in place, and the welding parameters need to deliver ample energy to fuse it through.
Joint Preparation and Fit-Up
The weld goes as deep as the joint allows. Bevel angle, root opening, and root face together decide how accessible the root really is. A wider groove gives better access but needs more filler and more passes. A tight groove saves time and metal, but it increases the chance of the arc skipping over the root. So, a balance has to be maintained.
Fit-up holds that design in place. The root gap has to stay within the Welding Procedure Specification (WPS) range. If it’s too tight, that restricts access. Too wide leads to burn-through or excess buildup. The root face should remain uniform along the joint, since variation changes penetration depth.
Root fusion is verified differently depending on joint access. On single-sided joints, where only one side is reachable, a steel backing bar is placed behind the joint before welding; it supports the root pass and prevents burn-through. On double-sided joints, where back-gouging is used instead: the first-side weld is completed, then the root is gouged out from the reverse side to expose sound metal before the second side is welded.
Welding Process and Parameter Control
Point design and fit-up set up the condition. The process selection and parameter control determine whether penetration is achieved pass by pass.
Amperage, travel speed, and heat input – all affect how deep the arc penetrates, and how they interact changes with material thickness. Here’s a quick comparison of how weld penetration behaviour compares among the welding processes:
| Process | Penetration behavior |
|---|---|
| TIG (GTAW) | High control, commonly used for root passes |
| MIG (GMAW) | Faster fill, moderate root control |
| Stick (SMAW) | Can achieve deep penetration, operator-dependent |
| FCAW | High deposition with good penetration on thicker sections |
| SAW | Deep, consistent penetration on heavy plate |
| Laser | Narrow, deep keyhole penetration, often single-pass |
Note that laser welding penetrates differently from arc processes. Above a certain power density, the beam vaporizes a narrow channel into the material (a keyhole), and penetration follows that channel rather than spreading out from a surface pool. This produces a narrow, deep weld with a high depth-to-width ratio, often in a single pass on joints where an arc process would need several.

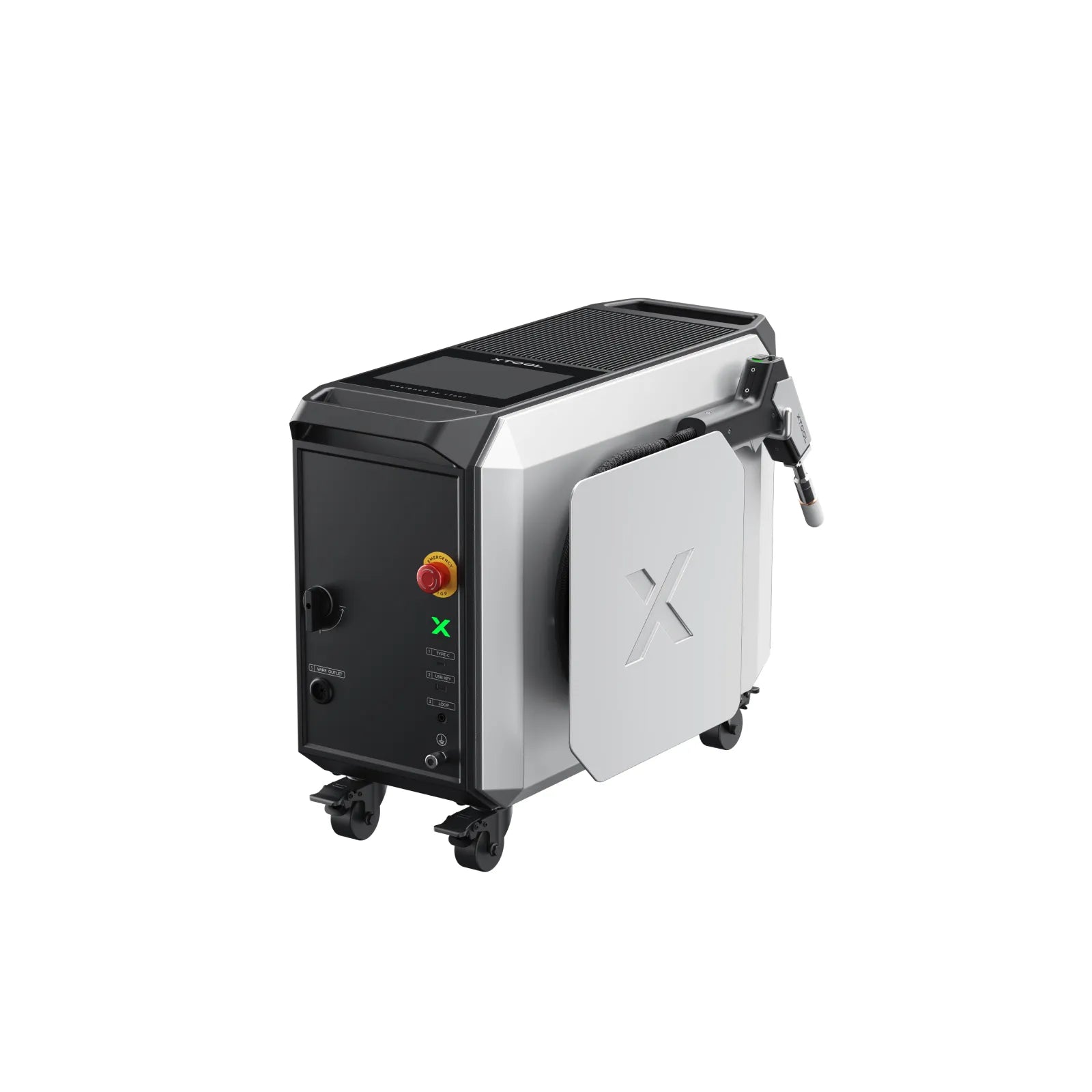

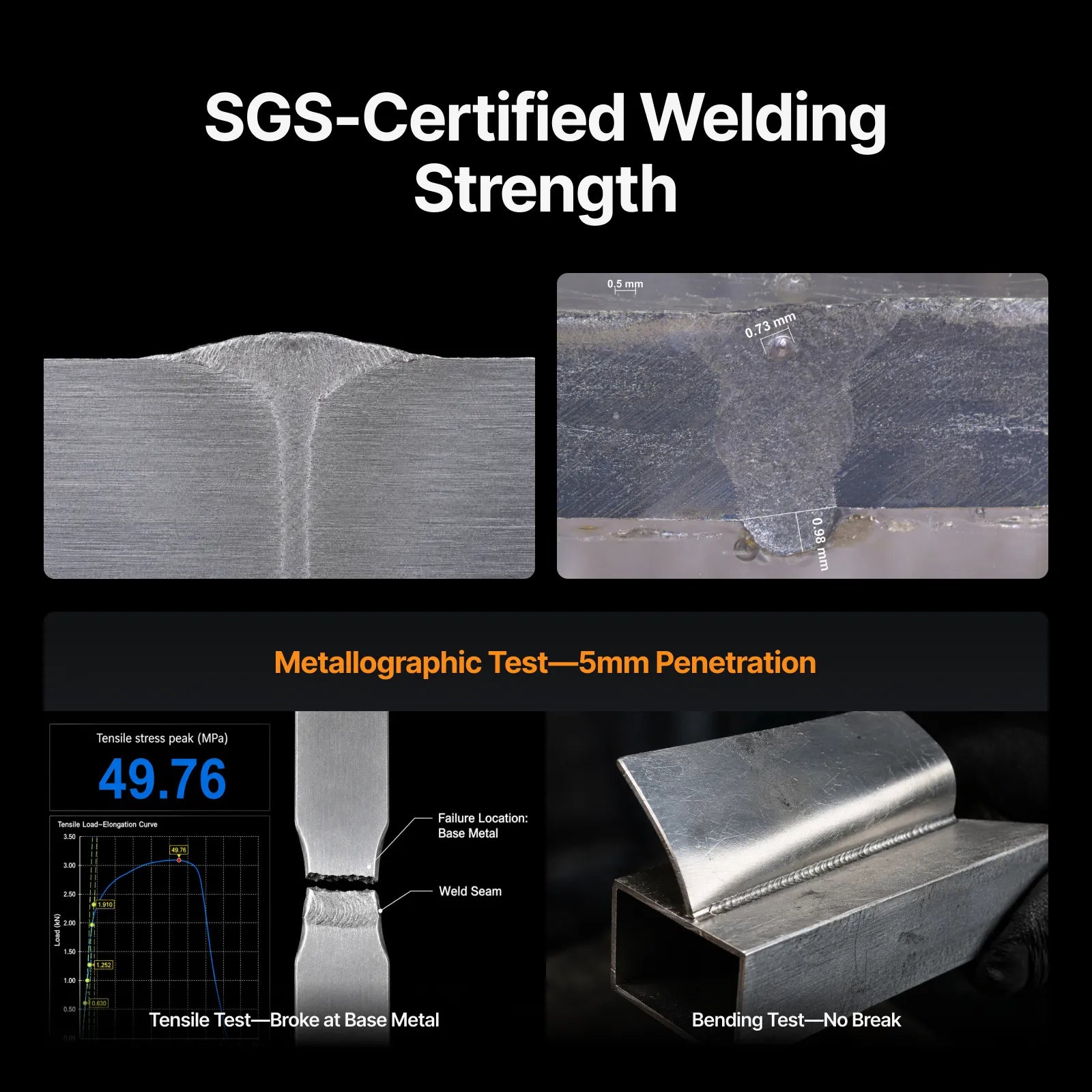

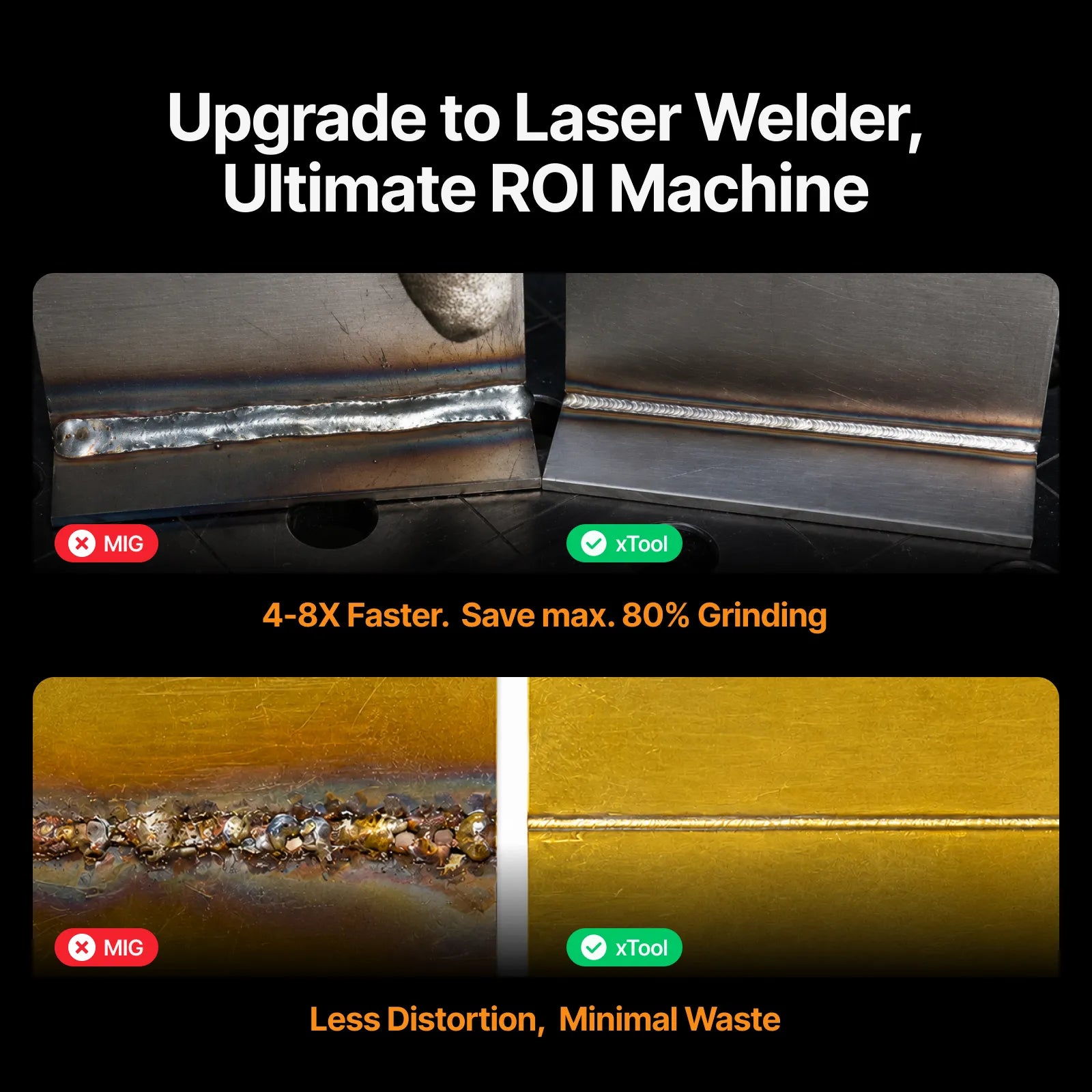

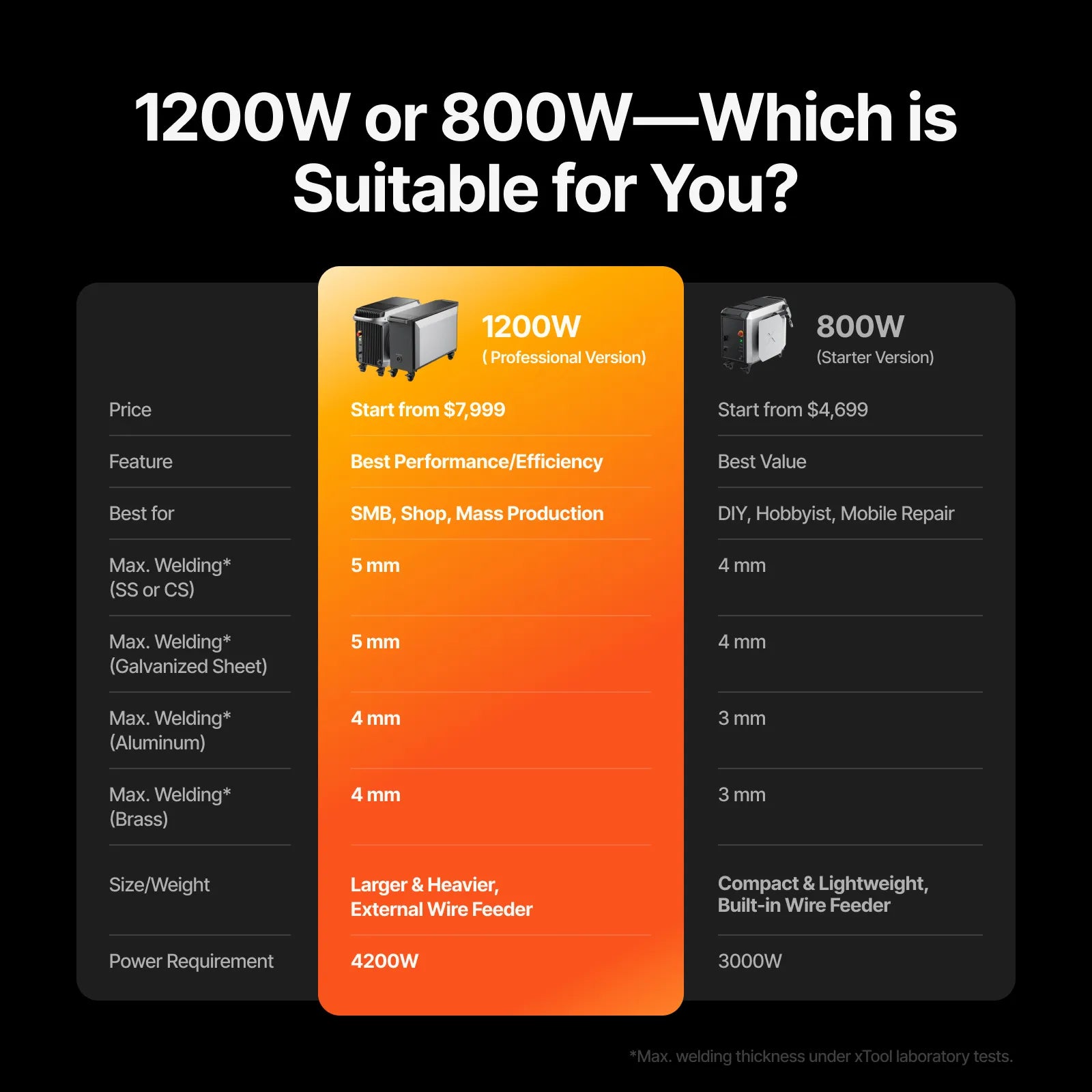

The xTool MetalFab is a practical example of how this works in real use. It can achieve penetration depths up to 5 mm on stainless, carbon, and galvanized steel in a single pass, and around 4 mm on aluminum, without the multi-pass buildup that’s very to arc welding at similar thicknesses.
Common Reasons Full Penetration Fails
Even with the right setup, full penetration can still fall short. Common causes include:
- Root opening or root face outside the qualified WPS tolerance, closing off arc access to the root.
- Insufficient amperage(heat) for the material thickness, leaving the root unfused.
- Travel speed too fast, not giving the arc enough time at the root before moving on
- Poor fit-up: misalignment, inconsistent root gap.
- Wrong electrode angle or work angle, directing the arc away from the root.
- Groove angle too narrow for the process being used, causing the arc to bridge over instead of penetrating inside.
How to Inspect And Verify Full Penetration
Visually, a good full penetration weld shows a consistent, convex bead on the face side. On the root (if that's accessible), it shows a continuous bead with slight reinforcement and no gaps. But a visual check isn't confirmation of what industrial codes demand.
There are certain destructive and non-destructive methods used to verify this. One of the destructive methods is macro-section testing. A section of the joint is cut, polished, and etched with acid to expose the weld profile under low magnification. It shows penetration depth and root fusion directly, which is why it's the method used to qualify a WPS before that procedure goes into production.
For finished production welds, you cannot cut open every joint. We rely on surface inspection or internal visual inspection methods. However, surface methods alone are insufficient since they cannot confirm root fusion, which leads us to need volumetric non-destructive (NDT) methods like ultrasonic and radiographic testing.
Ultrasonic Testing (UT) sends high-frequency sound waves into the weld; they reflect off internal boundaries/ defects, letting the operator find lack of fusion, voids, or incomplete root penetration. Another method, Radiographic Testing (RT) uses X-rays or gamma rays through the joint onto film or a digital detector, producing a direct image of internal discontinuities.
| Inspection Method | Type | Best Used For | What It Detects |
|---|---|---|---|
| Macro-Section Testing | Desctructive | Procedure qualification, parameter validation, test coupons | Penetration depth, root fusion, HAZ profile |
| Visual Testing (VT) | Non-desctructive | Every production weld, first-line check | Surface bead profile, undercut, reinforcement, obvious surface flaws |
| Ultrasonic Testing (UT) | Non-desctructive | Thick sections, field inspection | Lack of fusion, voids, incomplete root penetration |
| Radiographic Testing (RT) | Non-desctructive | Shop inspection where access allows, critical root verification | Internal discontinuities, lack of penetration, porosity, slag inclusions |
When Is a Full Penetration Weld Actually Needed?
It gets specified more than it should. CJP only makes sense when a connection has to carry the full tension capacity of the joined members, and is unjustified everywhere else, where the extra preparation, welding time, and inspection cost outweigh what the joint actually needs to do.
When CJP May Be Required
Use a full-penetration weld when you have:
- Fatigue-loaded connections
- Moment frames in seismic force-resisting systems
- Pressure boundaries under ASME
- Beam flange-to-end-plate connections
Examples: Bridge girder flange splices, rigid frame moment connections, column splices in high-seismic zones, pressure vessel shell and nozzle joints, pipeline girth welds under API 1104
For repeated production joints with suitable geometry and material thickness, laser welding systems such as xTool MetalFab may provide a faster route to full penetration than conventional multi-pass welding with far less heat going into the part.
When PJP or Fillet Welds May Be More Practical
Partial or fillet welds are more appropriate for:
- Compression-dominant joints
- Shear-loaded connections
- Static, non-cyclic loading conditions
- Secondary or non-critical members
Examples: Column splices, stiffeners, bracing, and many HSS connections.
Conclusion
A full penetration weld is only required where the joint must carry load through its full thickness without relying on partial fusion. In many cases, that level of continuity is unnecessary and adds cost without adding significant performance improvement.
For a CJP weld, you may judge the surface condition visually. But industrial codes demand verification through methods like macro-section testing during qualification and ultrasonic testing (UT) in production to confirm actual root fusion.
FAQs
1. How thick can a full penetration weld be?
There's no code-specified upper limit for CJP. It scales to whatever the joint thickness is, though very thick sections need multi-pass welding, backing, or back-gouging from both sides to reach the root.
2. Can a fillet weld provide the same required joint strength as a CJP weld?
In some joint designs, a properly sized fillet weld can provide the required joint strength or even develop the connected element’s capacity. However, it remains a fillet weld rather than a CJP weld because the geometry and penetration requirements are different.
3. Do full penetration welds always require a bevel or groove preparation?
Not necessarily. It depends on the metal thickness. Thin sheet or plate can reach full penetration with a square-groove joint (no bevel); thicker material needs a bevel to open root access.
4. Which welding process gives the deepest penetration?
In terms of depth per pass, laser welding in keyhole mode, since the beam creates a narrow, deep channel rather than spreading from a surface pool like arc processes.
5. How is CJP shown on a drawing?
Under AWS A2.4, omitting the depth of preparation and groove-weld size can indicate CJP for certain single-groove welds and symmetrical double-groove welds. The complete drawing, notes, and applicable symbol standard should always be checked.
6. What causes lack of penetration (LOP) in CJP welding?
LOP usually results from insufficient amperage or heat input, excessive travel speed, or a root opening/root face outside the qualified WPS tolerance.
For more questions, please join our community to get inspired!
