What Is MOPA Laser: All You Need to Know

by Raymond Lei Updated on July 16, 2025

Into laser engraving machines? You’ve probably heard the buzz about MOPA lasers. They are known for their superior metal engraving and marking capabilities. But what is inside a MOPA laser that makes it so special? How is it different from typical fiber lasers on the market?

In this blog, we will break down everything about MOPA lasers, starting from the basic concept and working principle, to where they shine the most and where they fall short.

We will also explore how MOPA compares with other common laser types so that you can understand its real-world advantages.

In This Article

  • What Is Spot Welding?
  • How Does Spot Welding Work?
  • Variables and Parameters in Spot Welding
  • When Do You Need to Spot Weld?
  • Advantages of Spot Welding
  • Limitations of Spot Welding
  • Tips for Perfect Spot Welding Results
  • Laser Spot Welding
  • Conclusion

MOPA Laser: Basic Concept to Know

To understand a MOPA laser architecture, you need to first comprehend how laser engravers work at a basic level. A laser beam is created by amplifying light within a special material called a gain medium. In traditional lasers, there’s often a trade-off between power and control. For example, increasing power might limit how precisely you can shape or time the pulses. But MOPA changes that.

MOPA is for Master Oscillator Power Amplifier, and the name itself defines the two-step laser’s creation process. Master Oscillator generates a low-power laser beam with specific characteristics while Power Amplifier boosts the strength of this beam without altering its original properties.

Still sounds a bit technical? Simply put, MOPA is a more controllable version of a fiber laser. You can control how fast it pulses, how strong it is, and how long each pulse lasts. This fine control makes MOPA lasers capable of things other lasers struggle with, for instance, color engraving on metals or thin plastics.

xtool f2 ultra.webp__PID:5dd73100-d865-453f-a185-ca90d18dff82

xTool F2 Ultra

World's First 60W MOPA & 40W Didode Laser engraver

Learn More

How Does MOPA Laser Work?

Here’s how the MOPA lasers work -we have outlined the basic steps:

Phase 1: Seed Pulse Generation (Master Oscillator)

The process begins in the master oscillator, usually a low-power laser diode or fiber laser. This component generates the initial laser beam, called the seed pulse

Phase 2: Electronic Control of Pulse Parameters

The master oscillator in a MOPA setup is driven by electronic signals, allowing full control over:

- Pulse duration (short or long, e.g., 2–500 ns)

- Repetition rate (usually from 20 kHz to 1 MHz)

- Output frequency and pulse energy

Phase 3: Signal Amplification (Power Amplifier Stage)

The seed pulse then travels into the power amplifier, usually a ytterbium-doped fiber, which amplifies the beam's power significantly. This is done without changing the pulse shape or quality.

mopa laser definition

Phase 4: Emission of High-Power Laser Beam

After amplification, the final laser beam is now high in energy but still carries the exact timing and structure defined by the master oscillator. The laser beam exits the machine and is directed to the workpiece via optics.

Phase 5: Material Processing

The beam interacts with the material based on the selected pulse settings:

- Short pulses create sharp marks with low heat impact

- Longer pulses or high repetition rates can create colored marks or remove more material

Advantages and Disadvantages

Like any other laser technology, MOPA laser comes with its own set of advantages and limitations. Here’s a closer look at both sides.

Advantages of MOPA Laser

- Adjustable Pulse Duration: MOPA laser’s pulse durations can be set between 2 to 500 ns, which allows customized processing for sensitive materials without damage.

- High Contrast and legibility: It can produce clear, high-contrast marks on plastics and metals that improve readability.

- Color Marking: Coloring a metal process requires precise customization of power and higher frequencies. Since everything is managed and more controlled, color marking on various metals is achievable.

- Low Maintenance and Long Life: Like standard fiber lasers, MOPA lasers require minimal maintenance, have a long lifespan (up to 100,000 hours), and use air cooling.

Disadvantages of MOPA Laser

- Higher cost: MOPA lasers are generally more expensive than Q-switched fiber lasers due to their advanced technology

- Slower Color Marking: Color engraving requires high frequencies and minimal hatch effects, which can slow down the process compared to standard marking.

How Is MOPA Laser Different from Other Lasers

Usually, types of lasers are defined according to the type of gain medium – the material that amplifies light. Fiber, CO2, and diode lasers are common in desktop laser machines. MOPA also falls under the fiber laser category but is slightly different from the standard fiber lasers.

Here’s a quick look at how MOPA compares with others. This will help you understand where it stands out and when it’s the better choice.

MOPA vs Fiber Laser (Q-switched Laser)

MOPA is a type of fiber laser since it uses the same gain medium. However, here, when we say “fiber lasers”, we’re usually referring to the Q-switched type, which is common and standard in most desktop laser machines.

The first major difference between standard fiber lasers and MOPA is the pulse control. Q-switched fiber lasers have a fixed pulse duration, usually around 120 ns. On the other hand, MOPA lasers have variable pulse durations, from 2 ns to 500 ns. Similarly, pulse frequency in regular fiber lasers ranges between 20–100 kHz, while MOPA can go from 20 kHz up to 1 MHz.

This pulse flexibility gives MOPA a major edge, especially for engraving on thin or heat-sensitive materials like plastics, where standard fiber lasers might cause burning. Also, MOPA systems are generally lower maintenance, and they often have a longer working life compared to typical Q-switched fiber lasers.

MOPA vs Diode Lasers

Diode lasers are a different class altogether. They use a semiconductor light source, operate at a different wavelength, and mostly come with lower power output. These are best suited for organic materials like wood, leather, paper, and fabrics, or shallow engravings.

In comparison, MOPA lasers deliver much higher power and beam intensity, which makes them ideal for marking and engraving metals and tough materials. While diode lasers are popular in the affordable or entry-level laser machines, MOPA lasers are considered more premium, both in price and performance.

MOPA vs CO2 Lasers

CO₂ lasers use a gas-based tube and emit light at a 10.6 µm wavelength, which works great on non-metallic materials like wood, acrylic, glass, leather, and rubber. However, they cannot engrave bare metals unless a special coating is applied because most of the laser light (of this particular wavelength) simply reflects off metal surfaces.

MOPA lasers are built specifically for metals and plastics. They’re not suitable for materials like wood or clear acrylic; those are better left to CO₂.

Table header 0MOPA LaserQ-Switched Fiber LaserDiode LaserCO2 Laser
Pulse DurationAdjustable (2 to 500 ns)Fixed (80 to 120 ns)FixedFixed
Wavelength~1064 nm~1064 nm~810–980 nm~10.6 μm
Primary UseMarking/engraving metals and plasticsDeep engraving on metalsEngraving soft materialsEngraving non-metals (wood, acrylic)
Color EngravingYesYesNoNo
Lifespan(Hours)Up to 100,00030,000 to 50,000 >10,000 25,000 – 45,000
CostMore expensiveRelatively expensiveMost AffordableVaries

Applications of MOPA Laser

MOPA lasers are highly versatile and used across various industries due to their precision and flexibility. Key applications include:

Color Marking

One of the standout features of MOPA lasers is their ability to produce vibrant colors on metals like stainless steel and titanium. By adjusting the pulse duration and frequency, thin oxide layers are formed on the metal surface, creating interference colors. This technique is widely used in jewelry, watchmaking, branding, and luxury packaging.

color engraved cup with mopa laser

Black Marking

MOPA lasers are also good at creating deep black marks on anodized aluminum, commonly used in electronics and consumer devices. This non-reflective mark is ideal for smartphones, tablets, laptops, and accessories where certification marks or unique identifiers are needed.

Medical Device Marking

In the medical field, devices and surgical instruments require biocompatible and sterile markings. MOPA lasers can produce high-contrast, corrosion-resistant marks that survive repeated passivation and sterilization.

Laser Ablation

MOPA lasers can also perform laser ablation, which means removing paint or coatings from surfaces in a controlled manner. A popular example is day/night marking in the automotive industry, where paint is selectively removed from backlit panels to allow light to pass through from behind.

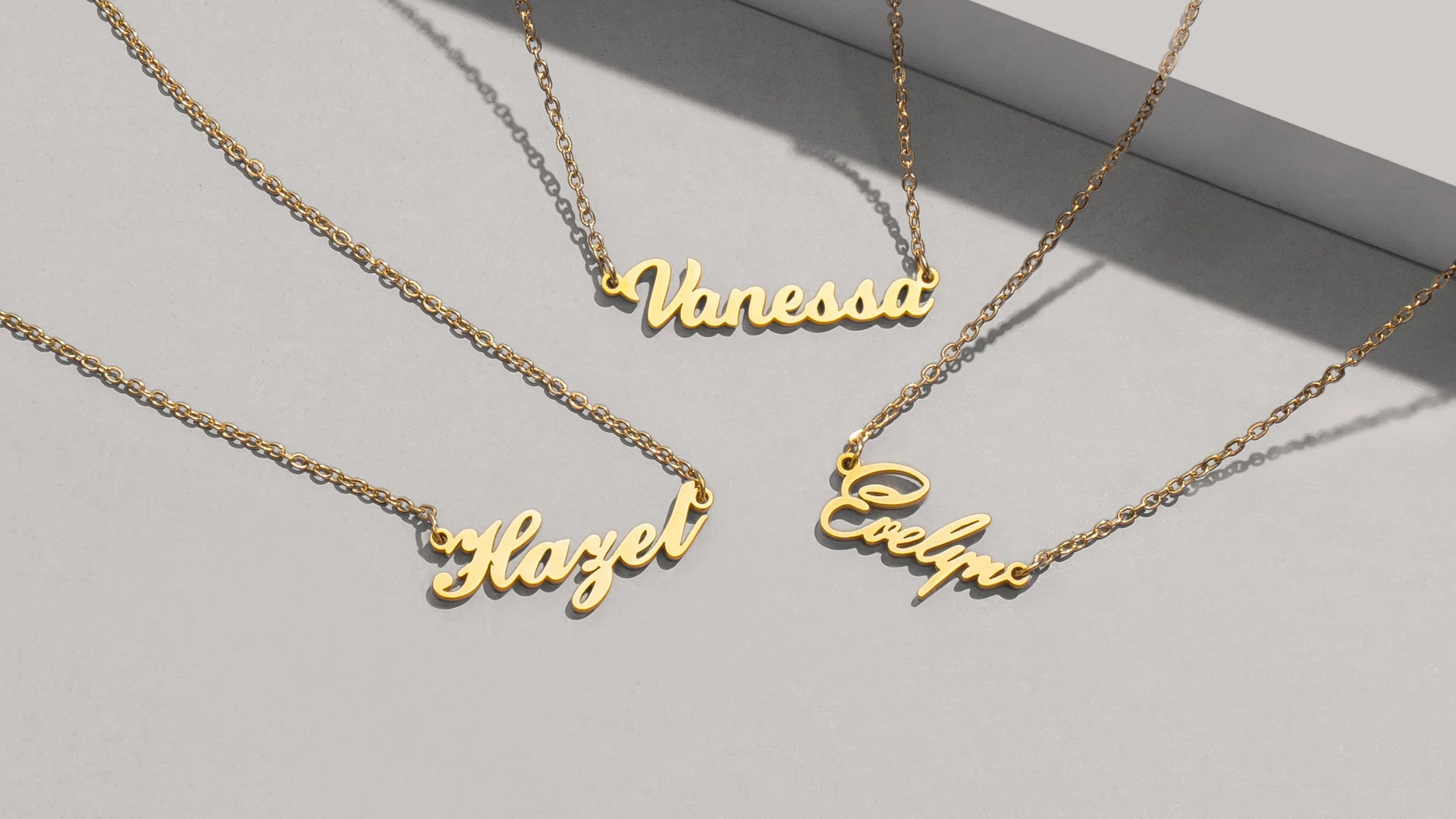

Jewelry

For engraving on gold, silver, platinum, and other metals, MOPA lasers provide high precision and the ability to create custom designs or color accents. Colorful pictures or portraits can also be made on jewelry.

mopa laser made jewelry

Precision Cutting of Thin Metals

Although not designed for heavy-duty cutting, MOPA lasers can be used to cut thin sheets of metal (e.g., stainless steel, brass, or copper foils) with precision. For instance, you may cut custom tags, nameplates, electronic parts, or stencils.

xTool F2 Ultra – the Ultimate MOPA Laser Engraver

If you’re considering a MOPA laser, xTool F2 Ultra is easily one of the most advanced options on the market. It’s the world’s first machine to combine a powerful 60W MOPA fiber laser with a 40W diode laser, giving you the best of both worlds.

The 60W MOPA laser module handles metals, while the diode laser takes care of non-metallic and organic materials like wood, leather, acrylic, and more. Not only can you engrave metals, but with MOPA, you unlock 100+ color possibilities, including gradients, tones, and even holographic effects on stainless steel.

The speed is impressive too: the F2 Ultra can engrave at up to 15,000 mm/s, a rate usually seen only in large industrial machines.

Need deep engravings or embossing textures? The F2 Ultra can handle those with ease. It is also capable of metal cutting, up to 2mm stainless steel in a single pass, and up to 23mm thick wood.

What makes this machine even smarter is its AI-powered workflow. Dual 48 MP cameras act as the “eyes” of the system, capturing your workspace in real time. Once you upload your design, the software automatically detects, adjusts, and applies settings, including color engraving parameters, which are typically complex to configure manually.

F2 Ultra keeps things compact, staying true to the design philosophy of the F-series. It offers a 220 x 220 mm working area, which can be extended up to 220 x 500 mm using the conveyor accessory. The conveyor also enables batch engraving, which allows you to engrave multiple items in one go, perfect for production runs.

The machine is fully enclosed, keeping harmful fumes contained. A dedicated exhaust system ensures quick and safe ventilation. The translucent lid allows visibility during operation while preventing light leakage. It also includes built-in safety sensors for emergency stops and a touchscreen controller for real-time control.

xtool f2 ultra.webp__PID:5dd73100-d865-453f-a185-ca90d18dff82

xTool F2 Ultra

World's First 60W MOPA & 40W Didode Laser engraver

Learn More

Final Words

MOPA is indeed an innovative technology that provides controlled laser output, unlocking a range of possibilities. Yes, it’s expensive compared to other laser technologies, but its efficiency and longer lifespan justify that cost.

MOPA is dedicated to metal-only engraving. So, xTool offers you an all-around solution in the form of the xTool F2 Ultra. A combo 60W MOPA fiber with a 40W diode lets you engrave almost any material, be it plastics, metals, or wood.
